Casavant Frères Ltd. (Opus 3568, 1983)

Location:

First Presbyterian Church
805 Center Avenue
Bay City, MI 48708 US
Sanctuary
Organ ID: 27256

Update This Entry

Status and Condition:

  • This instrument's location type is: Presbyterian Churches
  • The organ is unaltered from its original state.
  • The organ's condition is unknown.
We received the most recent update for this instrument's status from Database Manager on May 13, 2018.

Technical Details:

  • Chests: Electro-pneumatic (EP)
  • 54 ranks. 2,997 pipes. 4 divisions. 3 manuals. 38 stops. 47 registers.
All:
  • Chest Type(s): Electro-pneumatic (EP) chests
  • Position: Pipes exposed (in whole or in part) at the front of the room.
We received the most recent update for this division from Database Manager on May 13, 2018.
Main:
  • Manuals: 3
  • Divisions: 4
  • Stops: 38
  • Registers: 47
  • Position: Console in fixed position, right.
  • Manual Compass: 61
  • Pedal Compass: 32
  • Key Action: Electrical connection from key to chest.
  • Stop Action: Electric connection between stop control and chest.
  • Console Style: Traditional style without cover.
  • Stop Controls: Drawknobs in vertical rows on angled jambs.
  • Combination Action: Remote pneumatic/mechanical capture system.
  • Swell Control Type: Balanced swell shoes/pedals, AGO standard placement.
  • Pedalboard Type: Concave radiating pedalboard meeting AGO Standards.
  • Has Crescendo Pedal
  • Has Tutti Reversible Thumb Piston(s)
  • Has Tutti Reversible Toe Piston(s)
  • Has Combination Action Thumb Piston(s)
  • Has Combination Action Toe Piston(s)
  • Has Coupler Reversible Thumb Piston(s)
  • Has Coupler Reversible Toe Piston(s)
We received the most recent update for this console from Database Manager on May 13, 2018.
Database Manager on July 21, 2010:

Updated through online information from Jeff Scofield.

We received the most recent update for this note from Database Manager on April 09, 2020.

Database Manager on October 05, 2009:

Updated by Riley Wes Mitchell from information furnished by Casavant Frères, courtesy of Simon Couture.

We received the most recent update for this note from Database Manager on February 11, 2019.

Database Manager on July 27, 2007:

Identified through online information from Douglas W. Craw.

We received the most recent update for this note from Database Manager on April 09, 2020.
Source not recorded: Open In New Tab Stoplist copied from the factory specifications
We received the most recent update for this stoplist from Database Manager on April 09, 2020.

Instrument Images:

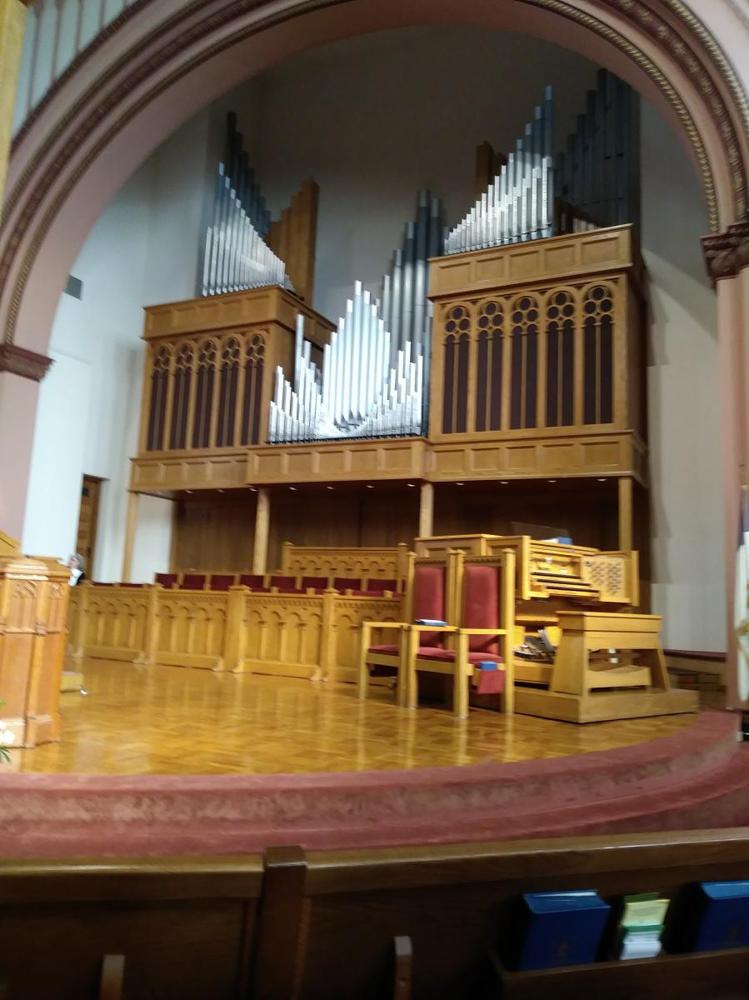

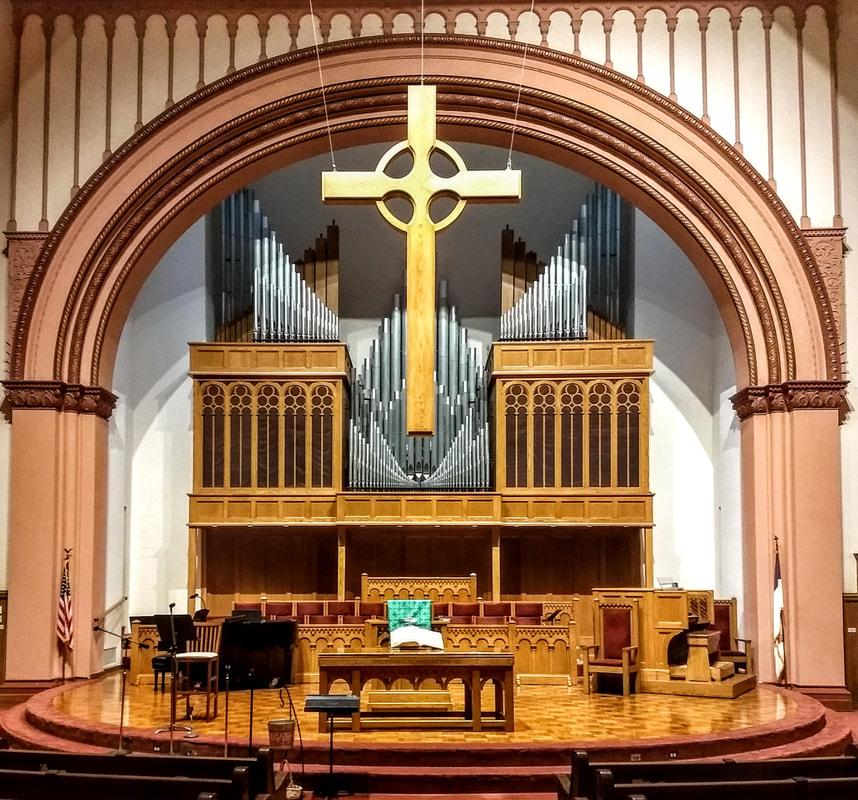

Console and Pipework: Photograph by Gerald A Mossner. Taken on 2019-09-21
