Balcom and Vaughan
Opus 485, 1949
Originally Estey Organ Co. (Opus 542, 1908)
St. James Lutheran Church
1315 SW Park Ave.
Portland, OR, US
9 Ranks - 508 Pipes
Instrument ID: 25695 ● Builder ID: 299 ● Location ID: 9077
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Something missing or not quite correct?Add StoplistorSuggest an Edit

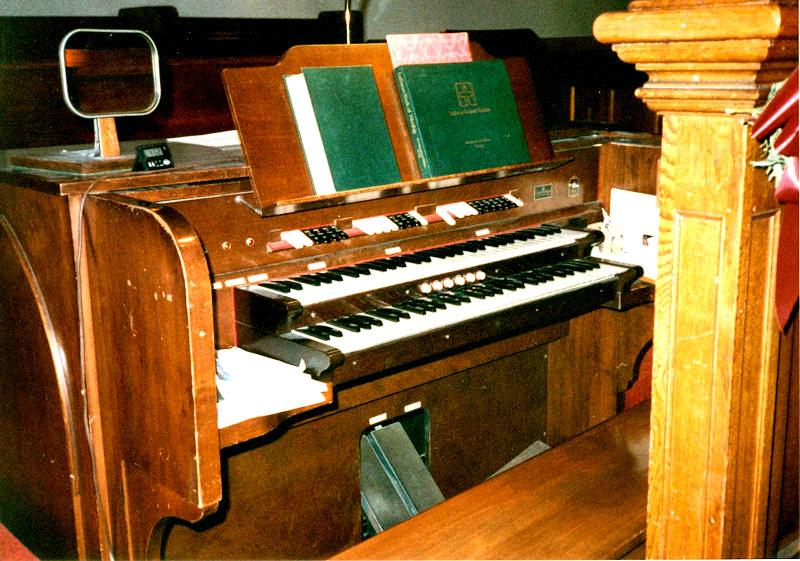

CONSOLES
Selected Item:
View additional console entries if they exist ☝️
Builder: Unknown
Position: Console in Fixed Position, Right
Design: Traditional With Roll Top
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
2 Manuals (61 Notes)32 Note Pedal3 Divisions10 Stops9 RegistersElectrical Key ActionElectrical Stop Action✓ Crescendo✓ Combination Thumb Piston(s)Stop Layout: Stop Keys Above Top Manual
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Fixed Mechanical
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
Database Manager on March 22nd, 2007:
Identified through online information from James R. Stettner. -- This was an electrification of the existing 1908 Estey. The original pipes and chests were retained. Balcom and Vaughan added an independent 12-pipe bass to the Swell 8' Salicional, and the Pedal compass was increaed from 30 to 32 notes. 2 pipes were added to the 16' Bourdon to make it full-compass. The finger pistons - labelled PP, P, MP, MF, FF - were preset and blind.
Identified through online information from James R. Stettner. -- This was an electrification of the existing 1908 Estey. The original pipes and chests were retained. Balcom and Vaughan added an independent 12-pipe bass to the Swell 8' Salicional, and the Pedal compass was increaed from 30 to 32 notes. 2 pipes were added to the 16' Bourdon to make it full-compass. The finger pistons - labelled PP, P, MP, MF, FF - were preset and blind.
Related Instrument Entries: Estey Organ Co. (Opus 542, 1908)
