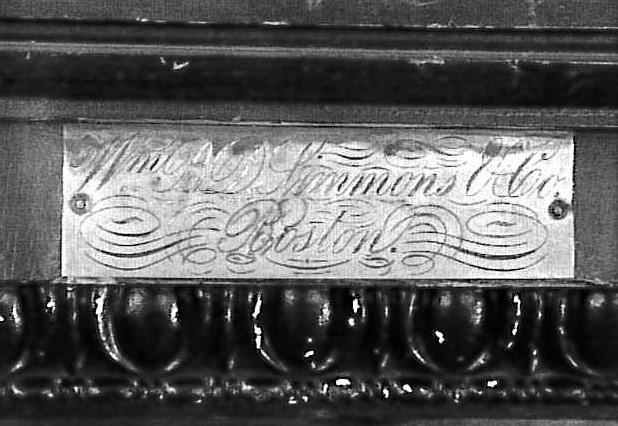

Wm. B.D. Simmons
1853
First Parish Church Unitarian Universalist
Sanctuary; rear gallery
824 Tremont Street
Duxbury, MA, US
15 Ranks - 664 Pipes
Instrument ID: 37170 ● Builder ID: 7979 ● Location ID: 3259
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
Plenum Organ Company
🤝 Instrument entries in Massachusetts sponsored by:
We are grateful for the generous support of our sponsors, who make it possible for us to continue our mission of preserving and promoting the rich history of pipe organs across the globe.
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.
| GREAT🛈 | ||
| 8' | Open Diapason | 56 |
| 8' | Dulciana [tc] | 44 |
| 8' | Claribella* [sic] [c1] | 32 |
| 8' | St. Diap. Treble [c1] | 32 |
| 8' | Stopped Diapason Bass | 24 |
| 4' | Principal | 56 |
| 4' | Flute [tc] | 44 |
| 2⅔' | Twelfth | 56 |
| 2' | Fifteenth | 56 |
| 8' | Trumpet [tf] | 39 |
| SWELL (Expressive)🛈 | ||
| 8' | Op. Diapason | 39 |
| 8' | St. Diap. | 39 |
| 8' | Viola | 39 |
| 4' | Principal | 39 |
| 8' | Hautboy | 39 |
| Tremulant |
| SWELL BASS🛈 | ||
| 8' | Stopped Diapason Swell Bass | 17 |
| PEDAL🛈 | ||
| 16' | Sub Bass Ped. | 13 |
| COUPLERS | ||
| Couple Pedals & Sw. Bass | ||
| Couple Pedals & Great | ||
| Couple Great & Swell |
| FOOT TRUNDLES | ||
| Great Piano | ||
| Great Forte |
| PEDAL MOVEMENTS | ||
| Swell Expression🛈 |
Something missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️
Builder: Wm. B.D. Simmons
Position: Keydesk Attached, Manuals Set Into Case
Design: Traditional With Hinged Doors That Enclose Keyboards
Pedalboard Type: Flat Straight
Features:
2 Manuals (56 Notes)17 Note Pedal3 Divisions15 Stops17 RegistersMechanical (Unknown) Key ActionMechanical Stop ActionStop Layout: Drawknobs in Vertical Rows on Flat Jambs
Expression Type: Trigger/Hitch-Down Expression
Combination Action: None
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
Database Manager on November 16th, 2008:

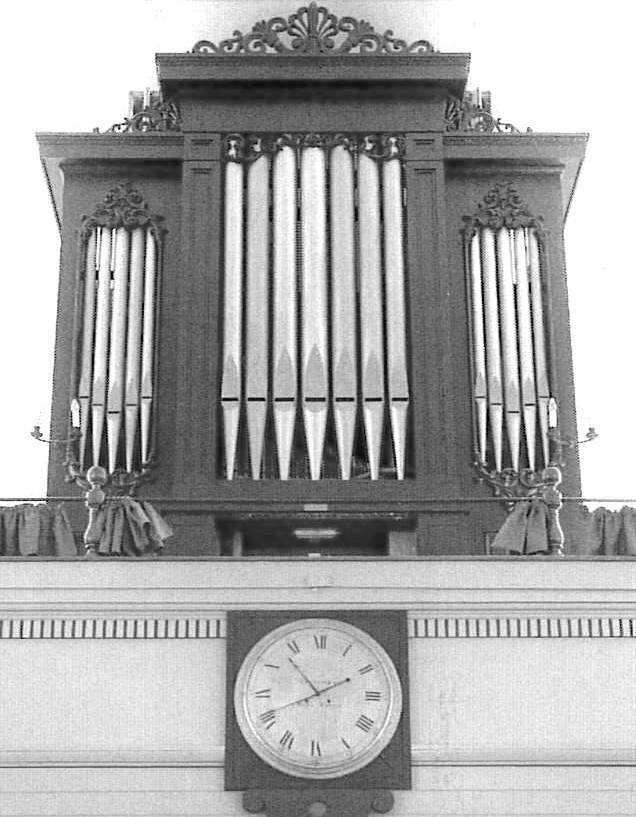

Identified through online information from James R. Stettner. -- The organ is freestanding and encased in the rear gallery. The facade is 3-sectional with 17 pipes arranged: 5-7-5. The Swell registers are short-compass (39 pipes) with only a single, unexpressive 17-note 8' St. Diap. Bass. The Pedal 16' Sub Bass is 13 pipes. The pedalboard is 17-notes. The Swell expression is hitch-down and stops are via drawknobs. The organ was substantially revised by Andover in 1967 as their R-99. Source: extant, altered organ; Andover files.
Identified through online information from James R. Stettner. -- The organ is freestanding and encased in the rear gallery. The facade is 3-sectional with 17 pipes arranged: 5-7-5. The Swell registers are short-compass (39 pipes) with only a single, unexpressive 17-note 8' St. Diap. Bass. The Pedal 16' Sub Bass is 13 pipes. The pedalboard is 17-notes. The Swell expression is hitch-down and stops are via drawknobs. The organ was substantially revised by Andover in 1967 as their R-99. Source: extant, altered organ; Andover files.
Related Instrument Entries: Andover Organ Co. (Opus R-99, 1967) , Andover Organ Co. (Opus R-99C, 2017)
