Aeolian-Skinner Organ Co.
Opus 1593, 1983
Unitarian Universalist Church of Greater Lynn
101 Forest Ave.
Swampscott, MA, US
21 Ranks
Instrument ID: 52006 ● Builder ID: 7993 ● Location ID: 45531
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
Plenum Organ Company
🤝 Instrument entries in Massachusetts sponsored by:
We are grateful for the generous support of our sponsors, who make it possible for us to continue our mission of preserving and promoting the rich history of pipe organs across the globe.
IMAGES
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Something missing or not quite correct?Add StoplistorSuggest an Edit

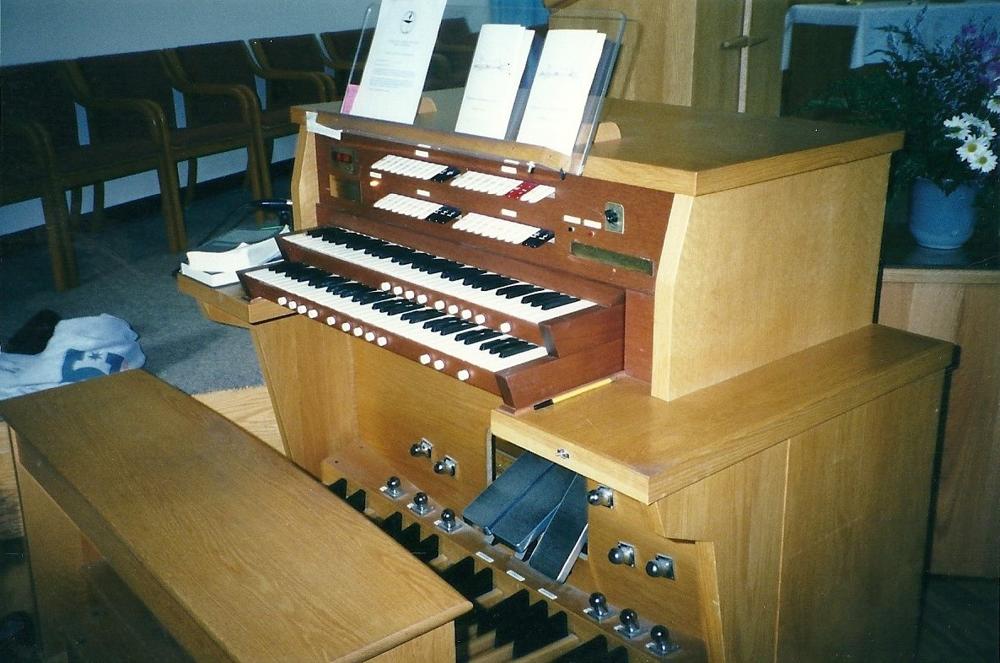

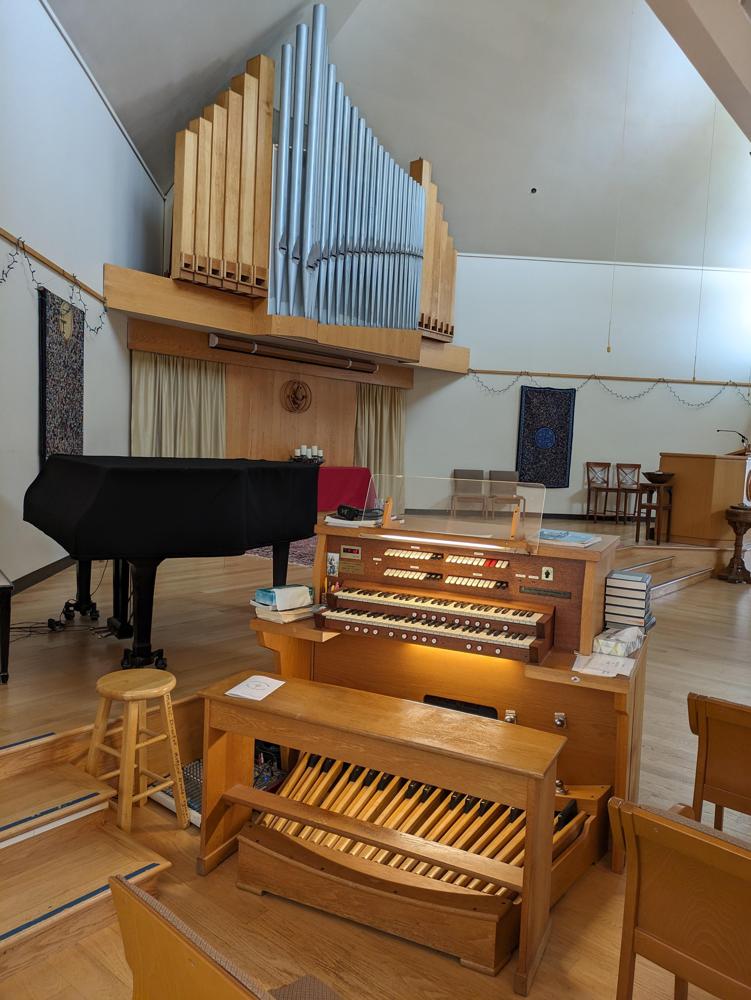

CONSOLES
Builder: Unknown
Position: Console in Fixed Position, Left
Design: Non-Traditional Style, As Consoles by Holtkamp, Schlicker, et al
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
2 Manuals (61 Notes)32 Note Pedal4 DivisionsElectrical Key ActionElectrical Stop Action✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Coupler Thumb Piston(s)✓ Sforzando Thumb Piston(s)✓ Sforzando Toe Piston(s)Stop Layout: Stop Keys Above Top Manual
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Adjustable Combination Pistons
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
This instrument is: Extant and Playable in this location
-Great mixture is 12-15 for the bottom 12 notes, then 12-15-19 for the remainder of the compass.
-Pedal unit Principal is enclosed with the Swell.

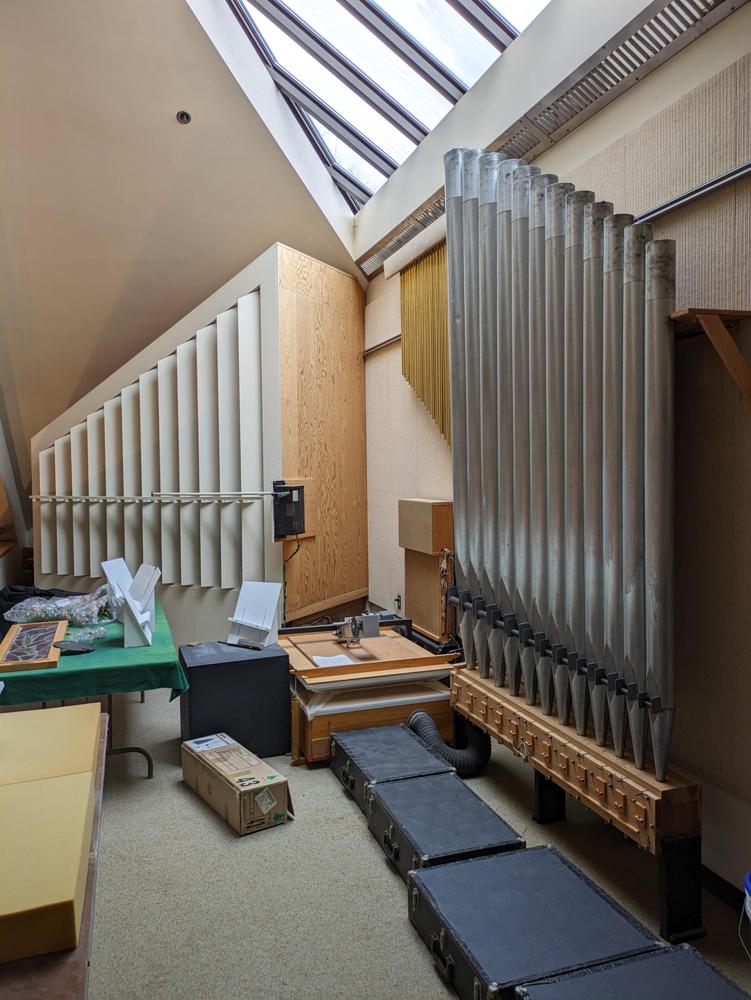

-Bottom 12 of the Antiphonal Flauto Dolce are Haskell basses.
-Electro-pneumatic pitman chests for main chests and electro-pneumatic unit chests for others.
-All coupling is done in the console via Reisner stop switches, as well as Great/Swell/Pedal unit stops
-Antiphonal shades are controlled via a Peterson unit and Swell shades are an 8 stage electro-pneumatic unit.
Database Manager on November 7th, 2013:
Updated through online information from Wayne Johnson.
Database Manager on October 25th, 2013:
This entry describes an original installation of a new pipe organ.
Identified by Wayne Johnson, based on personal knowledge of the organ.

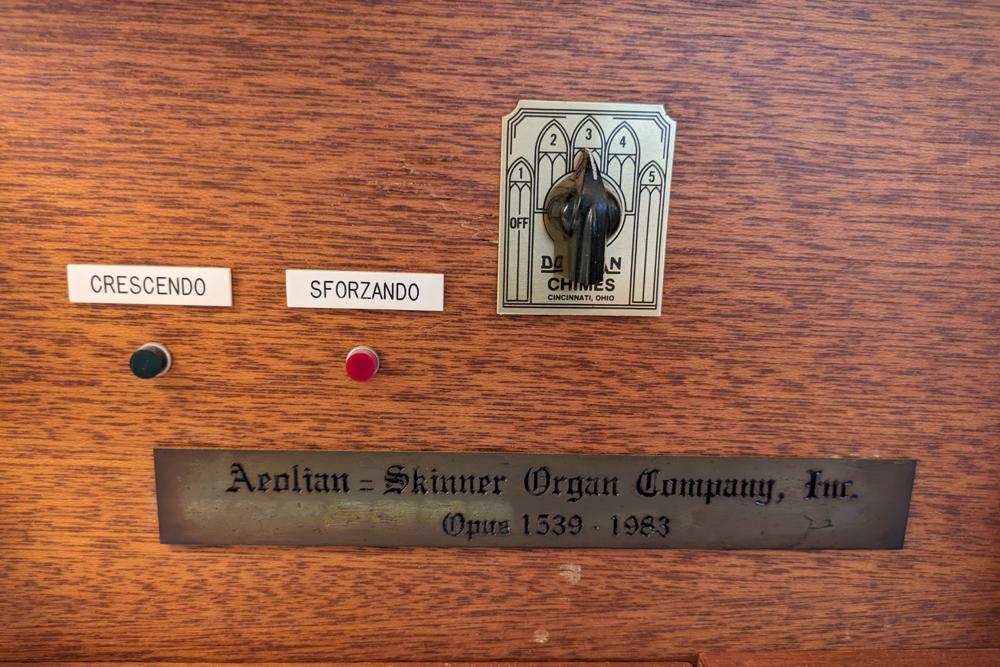

-- The original organ was lost in a flood in the basement except the pipework. The pipework was made and voiced by J. Hendriksen under the Aeolian-Skinner name which he bought the rights to after they closed. The console, chests and resevoirs are all made by Organ Supply Industries. The console bears an Aeolian-Skinner nameplate made in 1983.
