The D. W. Karn Co., Ltd.
1905

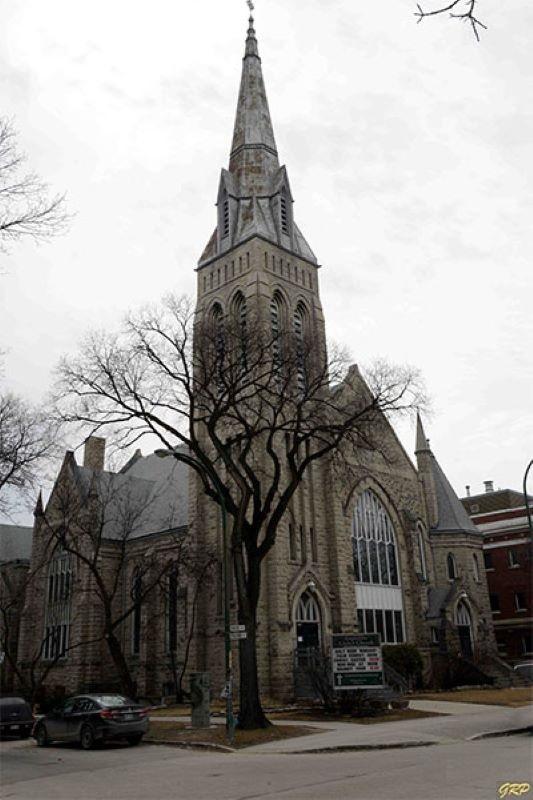

Augustine Presbyterian (United) Church
444 River
Winnipeg, MB, CA
30 Ranks - 1,769 Pipes
EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.
| Great Organ | ||
| 16' | Double Open Diapason🛈 | |
| 8' | Open Diapason ("large")🛈 | |
| 8' | Doppel Flute🛈 | |
| 8' | Gamba🛈 | |
| 4' | Principal🛈 | |
| 4' | Harmonic Flute🛈 | |
| 2' | Fifteenth🛈 | |
| III | Mixture🛈 | |
| 8' | Trumpet🛈 |
| Swell Organ | ||
| 16' | Bourdon🛈 | |
| 8' | Open Diapason ("large")🛈 | |
| 8' | Stopped Diapason🛈 | |
| 8' | Viol di Gamba🛈 | |
| 8' | Aeoline🛈 | |
| 8' | Vox Celeste🛈 | |
| 4' | Flauto Traverso🛈 | |
| 2' | Piccolo🛈 | |
| 8' | Cornopean🛈 | |
| 8' | Oboe & Bassoon🛈 | |
| Tremulant |
| Choir Organ | ||
| 8' | Geigen Principal🛈 | |
| 8' | Melodia🛈 | |
| 8' | Dulciana🛈 | |
| 4' | Wald Flute🛈 | |
| 2' | Flageolet🛈 | |
| 8' | Clarionet🛈 | |
| Tremulant |
| Pedal Organ | ||
| 16' | Open Diapason🛈 | |
| 16' | Bourdon🛈 | |
| 8' | Violoncello🛈 |
| Mechanical Registers | ||
| Full Organ Pedal | ||
| Great to Pedal | ||
| Swell to Pedal | ||
| Choir to Pedal | ||
| Choir Sub-octave to Great | ||
| Swell to Great | ||
| Swell to Choir | ||
| Choir to Great | ||
| Great at Octaves | ||
| Tremulant to Swell | ||
| Wind Indicator | ||
| Crescendo Indicator |
| Pedal Movements | ||
| Three Combination Pneumatic Pistons to Swell | ||
| Three Combination Pneumatic Pistons to Great | ||
| Great to Pedal. Reversible. | ||
| Balanced Swell Pedal | ||
| Balanced Crescendo Pedal (controlling entire organ, including couplers) | ||
| Standard Pedalboard | ||
| Ross Water Motor |
Originally Written/Published: February 18, 1905
Open In New TabSomething missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️
Builder: Unknown
Position: Unknown
Design: Unknown
Pedalboard Type: Unknown
Features:
3 Manuals (61 Notes)30 Note PedalTubular Pneumatic (Unknown) Key ActionTubular Pneumatic (Unknown) Stop Action✓ Crescendo✓ Combination Thumb Piston(s)✓ Coupler Toe Piston(s)Stop Layout: Unknown
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination Action: Adjustable Combination Pistons
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, audio, and blowers ☝️
This instrument is: Extant and Playable in this location
Jim Stettner on October 13th, 2023:
This entry represents the installation of a new organ.
