Casavant Frères
Opus 3785, 2023
Originally Casavant Frères (Opus 3785, 1999)
St. Louis Roman Catholic Church
203 S. White Station Road
Memphis, TN, US
30 Ranks - 1,755 Pipes
Instrument ID: 71545 ● Builder ID: 1117 ● Location ID: 36630
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
This instrument has multiple revisions:
Plenum Organ Company
🤝 Instrument entries in Tennessee sponsored by:
We are grateful for the generous support of our sponsors, who make it possible for us to continue our mission of preserving and promoting the rich history of pipe organs across the globe.
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.
| Grand Orgue🛈 | ||
| 16' | Bourdon🛈 | |
| 8' | Montre | 61 |
| 8' | Salicional | 61 New |
| 8' | Flûte harmonique🛈 | 49 New |
| 8' | Flûte à cheminée | 61 |
| 4' | Prestant | 61 |
| 4' | Flûte douce | 61 New |
| 4' | Flûte à cheminée | 12 |
| 2' | Doublette🛈 | 61 |
| II | Cornet🛈 | 98 tc |
| IV | Fourniture | 244 |
| 8' | Trompette | 61 |
| Tremblant🛈 | New | |
| 8' | Hautbois | Récit |
| Chimes | New Walker C2-G5 | |
| 16' | Récit to Grand Orgue | |
| 8' | Récit to Grand Orgue | |
| 4' | Récit to Grand Orgue |
| Récit (Expressive)🛈 | ||
| 8' | Diapason | 61 New |
| 8' | Bourdon | 61 |
| 8' | Viole de gambe | 61 |
| 8' | Voix celeste🛈 | 49 tc |
| 4' | Principal | 61 |
| 4' | Flûte à fuseau | 61 |
| 2' | Flûte🛈 | 61 |
| 1 1⁄3' | Larigot🛈 | 61 New |
| III | Plein Jeu🛈 | 183 New |
| 16' | Basson | 12 ext. Hautbois |
| 8' | Trompette | 61 New |
| 8' | Hautbois | 61 |
| 4' | Clairon | 12 New, ext. Trompette |
| 8' | Trompette | Grand Orgue |
| Tremblant | ||
| 4' | Clairon | Grand Orgue |
| Zimbelstern | ||
| 16' | Récit to Récit | |
| Récit Unison Off | ||
| 4' | Récit to Récit |
| Pédale🛈 | ||
| 32' | Bourdon | New Walker digital |
| 16' | Contrebasse | New Walker digital |
| 16' | Soubasse | 32 |
| 8' | Octavebasse | 32 |
| 8' | Bourdon | 12 ext. Soubasse |
| 8' | Salicional | Grand Orgue |
| 4' | Octave | 32 |
| 4' | Flûte | G.O. Flûte Harm |
| 16' | Bombarde | 12 GO Trompette |
| 16' | Basson | Recit |
| 8' | Trompette | Grand Orgue |
| 4' | Clairon | Grand Orgue |
| 4' | Hautbois | Récit |
| 8' | Grand Orgue to Pédale | |
| 4' | Grand Orgue to Pédale | |
| 8' | Récit to Pédale | |
| 4' | Récit to Pédale |
Something missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️

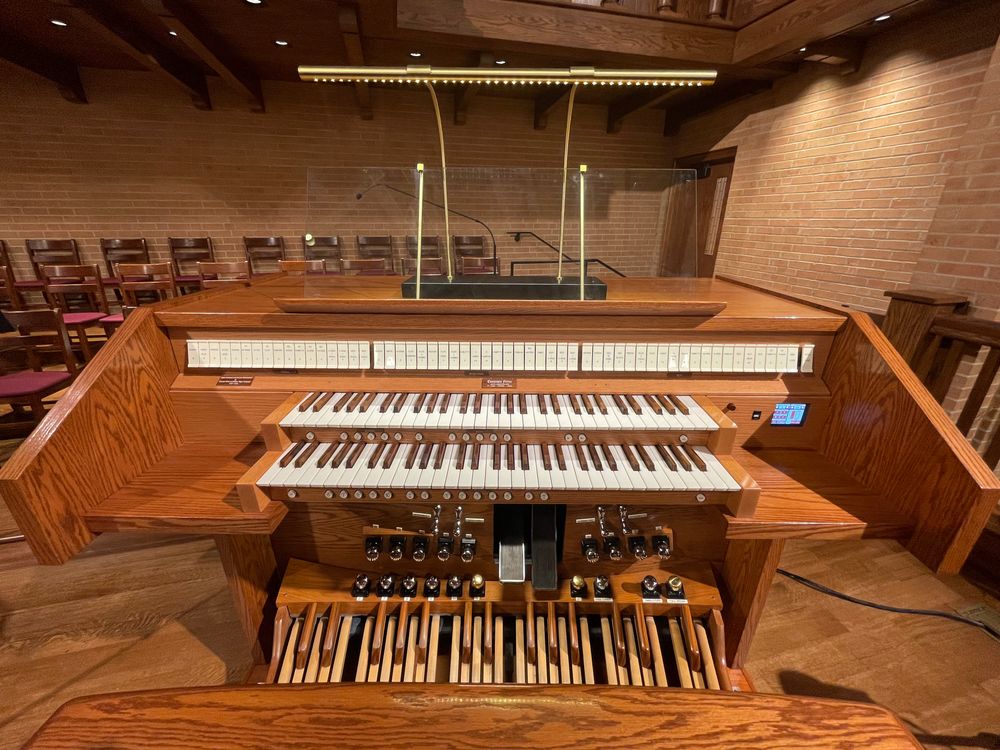

Builder: Casavant Frères
Position: Movable Console
Design: Traditional Without Cover
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
2 Manuals (61 Notes)32 Note Pedal3 Divisions24 Stops40 RegistersElectrical Key ActionElectrical Stop Action✓ Crescendo✓ Pedal Divide✓ Transposer✓ Sequencer✓ MIDI✓ Record/Playback✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Coupler Thumb Piston(s)✓ Coupler Toe Piston(s)✓ Sforzando Thumb Piston(s)✓ Sforzando Toe Piston(s)Stop Layout: Tilting/Rocking Tablets Above Top Manual
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Computerized/Digital
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
