CONSOLES

Selected Item:
View additional console entries if they exist ☝️

Builder: Wahl Organbuilders
Position: Keydesk Attached
Design: Traditional Without Cover
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
2 Manuals (61 Notes)32 Note Pedal3 Divisions4 Stops5 RegistersMechanical (Unknown) Key ActionMechanical Stop Action

Stop Layout: Drawknobs in Vertical Rows on Flat Jambs
Expression Type: No Enclosed Divisions
Combination Action: None
Control System: Unknown or N/A

Something missing or not quite correct?Add ConsoleorSuggest an Edit

DETAILS

Switch between notes, documents, audio, and blowers ☝️
This instrument is: Extant and Playable in this location

Jim Stettner on August 5th, 2026:

This entry represents the installation of a new series organ. Identified from an online Facebook post by Christoph Wahl, August 4, 2026.

From the builder's website, "Wahl Organbuilders has installed a newly design practice organ for an undisclosed private residence in Cypress, Texas. With two manuals and pedal, the instrument contains four ranks of widely-varying character to provide distinct variety for such a small instrument."

"The instrument’s tonal core is the lower manual 8’ Fugara. A string with principal leanings, the Fugara provides a foundation of open tone. The bass octave is of Haskell construction to continue open tone to the lowest notes. The 4’ Gemshorn is a tapered hybrid principal, made all the more useful for being available on both manuals. The sharing, by channel dividers, allows either or both manuals to use this stop at any time. To save space, the Gemshorn's lowest seven notes are borrowed from the Fugara’s tenor octave."

"In addition to the shared Gemshorn, the upper manual is home to the 8’ Lieblich Gedact, a stopped rank of narrow scale and daringly high cutup. Here is a register of uncanny clarity and piquancy, whose vibrant zing is equally capable of solo lines as of dense chordal accompaniment. The fourth rank, a fully-independent 8’ Pedal Bass, is a generously-scaled wood Gedact."

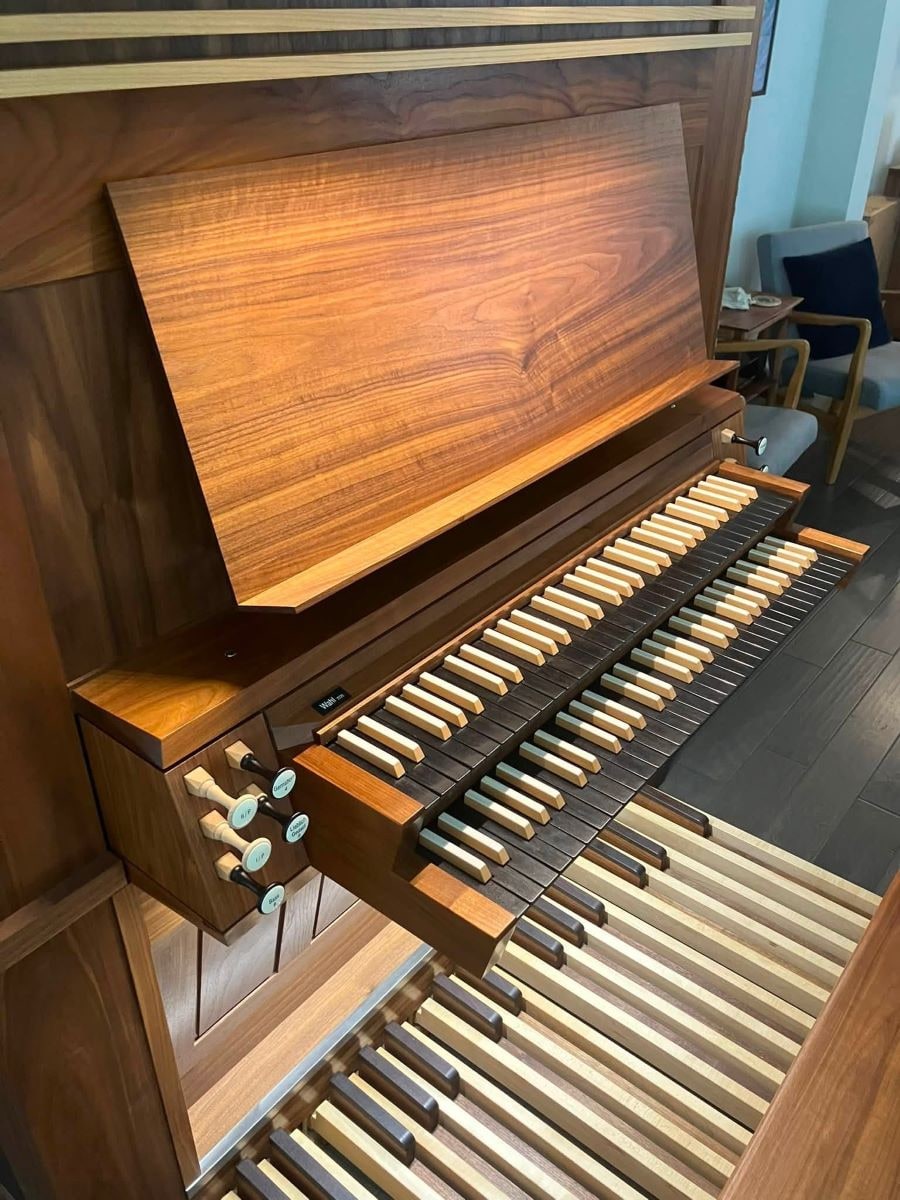

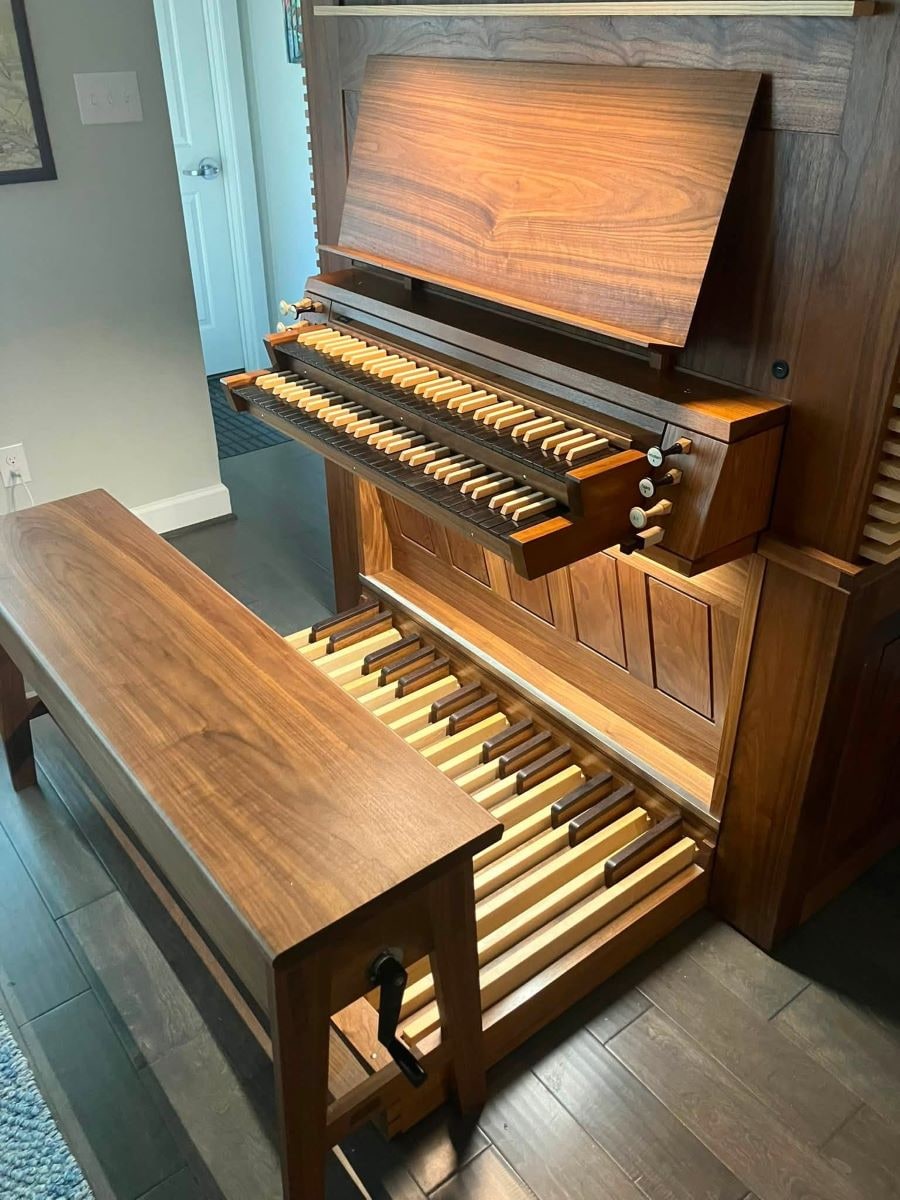

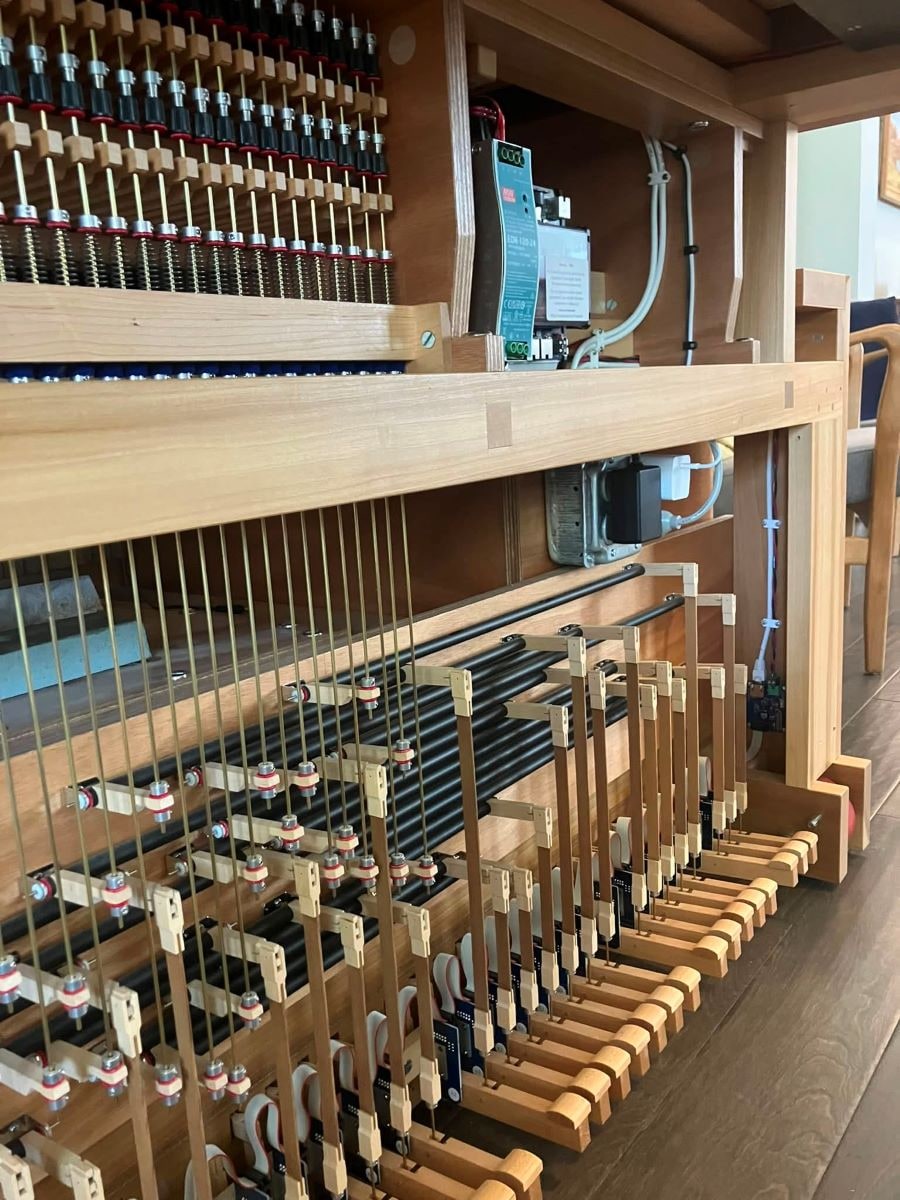

"These four resources are marshaled by a mechanism elegantly economical in design. Having but three elements between finger and pipe, the key action is immediate and responsive — gratifying to play, and sustaining years of careful practice without fatigue or boredom. Full modern key compasses allow preparation of all music as well as the option of octave transposition."

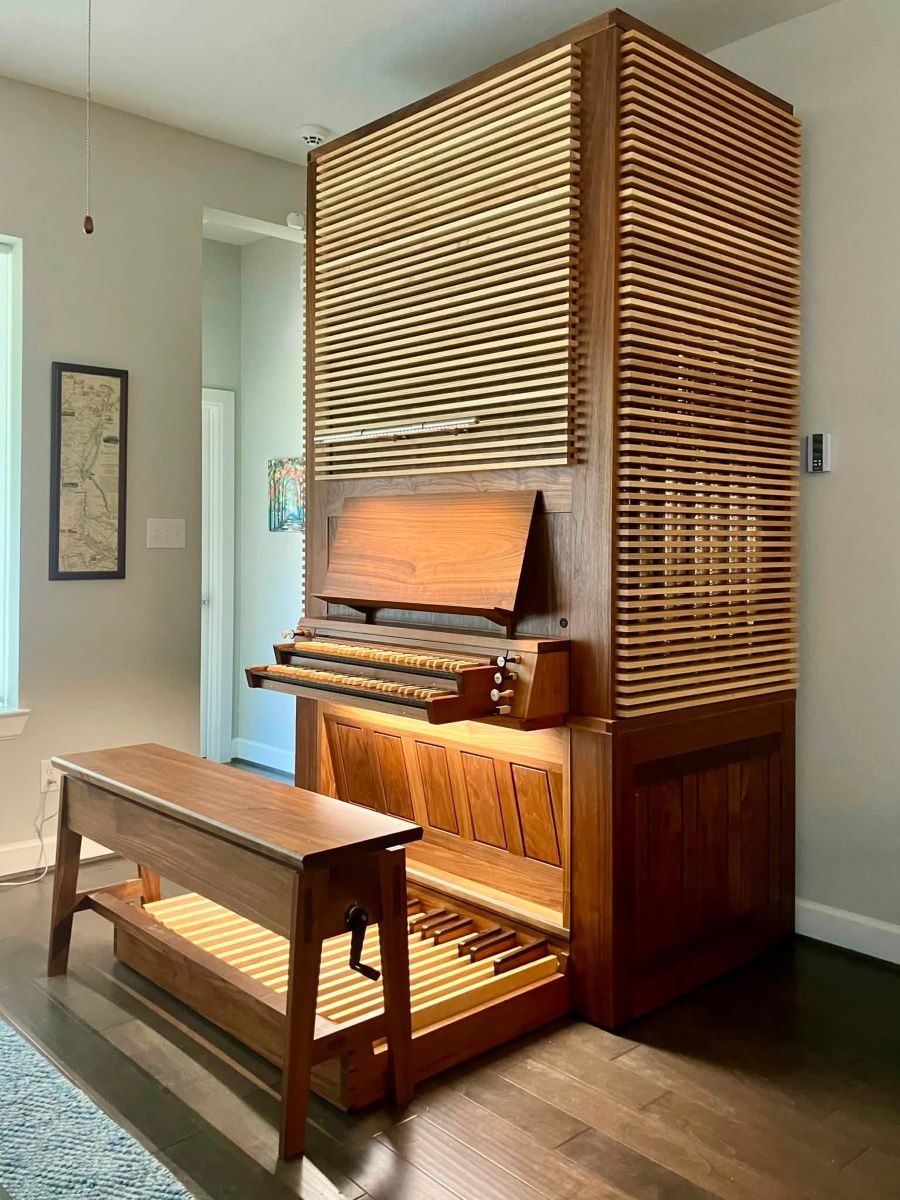

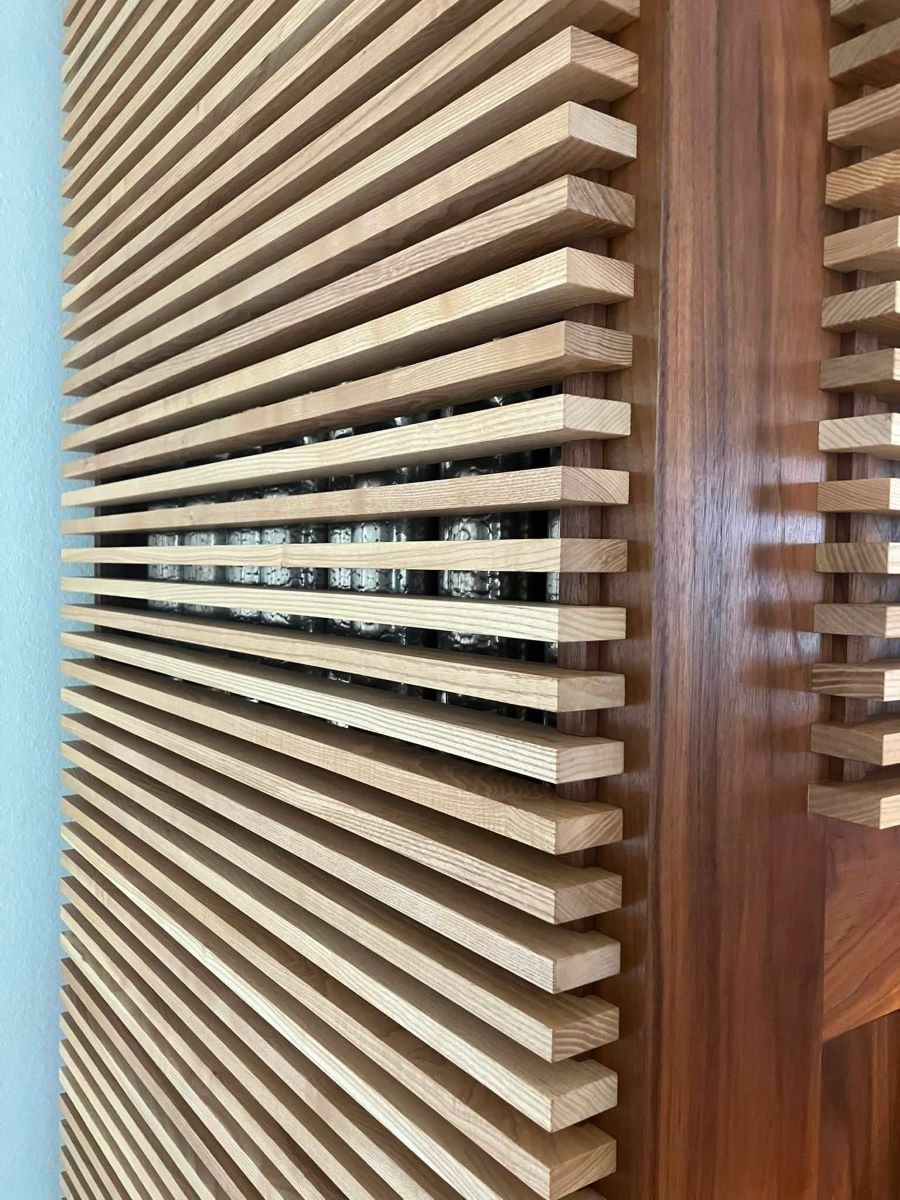

"The entire instrument is contained within a hardwood casework. The front and sides grillwork to allow good tonal egress while protecting the pipework. A simple internal dolly allows the instrument to move away from the wall for service access. The instrument fits beneath an 8' ceiling."

"As with our earlier practice instruments, we designed this organ on the assumption that it may be relocated many times (as seven other Wahl instruments already have been moved eight times since their original installations). Our modular design allows for ready relocation; only the fewest possible elements require disassembly for moving. The electric blower supplying the wind is housed within the instrument, and requires only a standard 110-volt wall outlet."

"Wahl Organbuilders previously delivered a twin to the Cypress, Texas organ in the Groton School in Groton, Massachusetts in 2025 for which Jonathan Ambrosino was the consultant."
