Bond Pipe Organs Inc.
Opus 16, 1989
St. James Lutheran Church
Sanctuary
1315 SW Park Ave.
Portland, OR, US
29 Ranks - 1,709 Pipes
Instrument ID: 9878 ● Builder ID: 721 ● Location ID: 9077
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Something missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️
Builder: Bond Pipe Organs Inc.
Position: Console in Fixed Position, Right
Design: Traditional With Roll Top
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
3 Manuals (61 Notes)32 Note Pedal4 Divisions29 Stops23 RegistersElectrical Key ActionElectrical Stop Action✓ Crescendo✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Coupler Thumb Piston(s)✓ Coupler Toe Piston(s)✓ Sforzando Thumb Piston(s)✓ Sforzando Toe Piston(s)Stop Layout: Drawknobs in Vertical Rows on Angled Jambs
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Adjustable Combination Pistons
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
James R. Stettner on September 18th, 2022:
according to Bond team member Grant Edwards in a September 2022 Facebook post, the organ was removed from the church by Bond in June 2022 for a building earthquake retrofit. The organ was reinstalled in September of 2022.
according to Bond team member Grant Edwards in a September 2022 Facebook post, the organ was removed from the church by Bond in June 2022 for a building earthquake retrofit. The organ was reinstalled in September of 2022.
Database Manager on March 22nd, 2007:

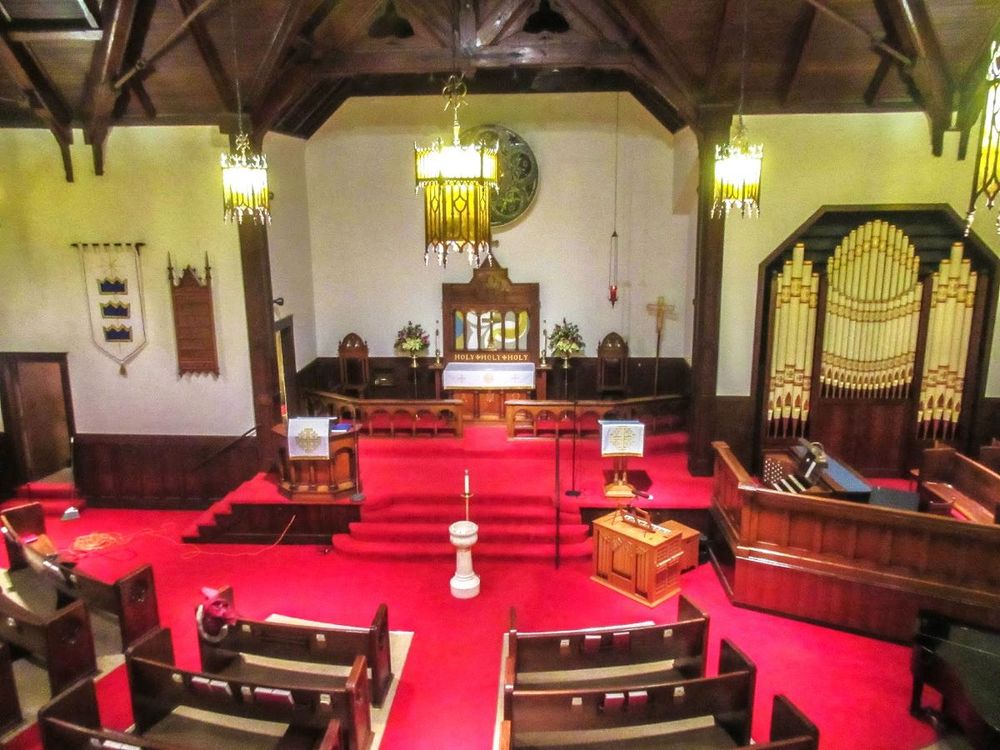

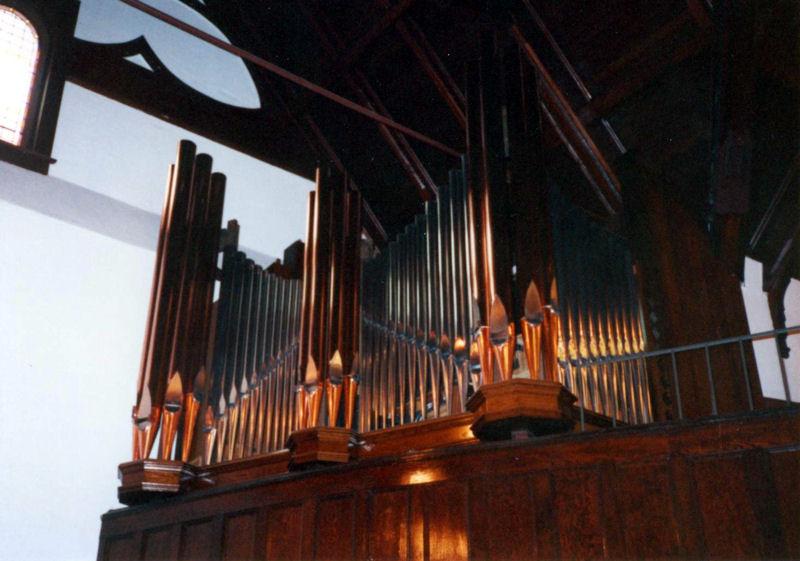

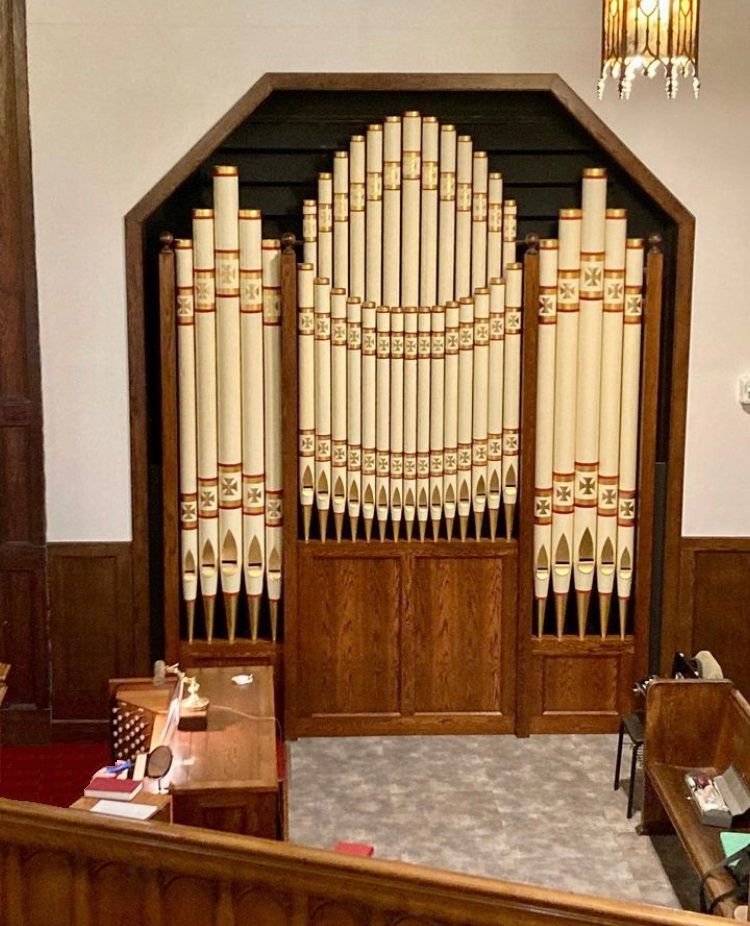

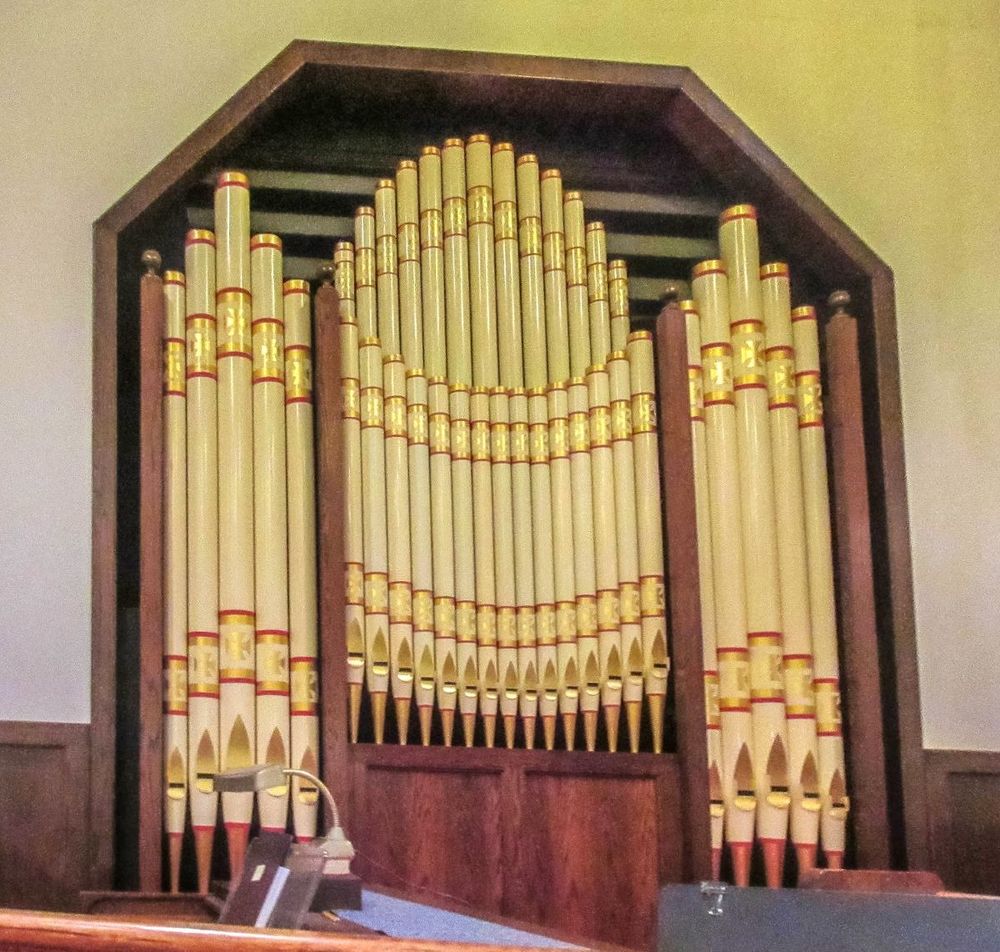

Updated through online information from James R. Stettner. -- This is an essentially new organ incorporating most of the existing Estey. The Great, Swell, and Pedal are located in a case in the left side of the rear gallery right at the edge of the gallery rail. The 7-rank Antiphonal division is located in the original chamber at the right side of the chancel platform. The chamber has stencilled facade pipes.
Database Manager on October 30th, 2004:
Status Note: There 1989
Something missing or not quite correct?Add NoteorAdd WebpageorAdd Cross ReferenceorSuggest an Edit
