Casavant Frères Ltée. (Opus 3548, 1982)

Location:

Westminster Presbyterian Church
2525 Wimberly Rd.
Amarillo, TX 79109 US
Sanctuary
Organ ID: 45577

Update This Entry

Status and Condition:

  • This instrument's location type is: Presbyterian Churches
  • The organ is unaltered from its original state.
  • The organ's condition is unknown.
We received the most recent update for this instrument's status from Database Manager on May 13, 2018.

Technical Details:

  • Chests: Electro-pneumatic (EP)
  • 32 ranks. 1,737 pipes. 3 divisions. 2 manuals. 24 stops. 30 registers.
All:
  • Chest Type(s): Electro-pneumatic (EP) chests
We received the most recent update for this division from Database Manager on May 13, 2018.
Main:
  • Manuals: 2
  • Divisions: 3
  • Stops: 24
  • Registers: 30
  • Manual Compass: 61
  • Pedal Compass: 32
  • Key Action: Electrical connection from key to chest.
  • Stop Action: Electric connection between stop control and chest.
  • Console Style: Traditional style with roll top.
  • Stop Controls: Tilting/rocking tablets above top manual.
  • Combination Action: Adjustable combination pistons.
  • Swell Control Type: Balanced swell shoes/pedals, AGO standard placement.
  • Pedalboard Type: Concave radiating pedalboard meeting AGO Standards.
  • Has Crescendo Pedal
  • Has Tutti Reversible Thumb Pistons
  • Has Tutti Reversible Toe Pistons
  • Has Combination Action Thumb Pistons
  • Has Combination Action Toe Pistons
  • Has Coupler Reversible Thumb Pistons
  • Has Coupler Reversible Toe Pistons
We received the most recent update for this console from Database Manager on May 13, 2018.
Database Manager on May 25, 2010:

Updated through online information from Jeff Scofield.

We received the most recent update for this note from Database Manager on April 09, 2020.

Database Manager on November 22, 2009:

Identified by Trailon Johnson from information furnished by Casavant Frères, courtesy of Simon Couture.

We received the most recent update for this note from Database Manager on February 11, 2019.
Source not recorded: Open In New Tab Stoplist copied from the factory specifications
We received the most recent update for this stoplist from Database Manager on April 09, 2020.

Instrument Images:

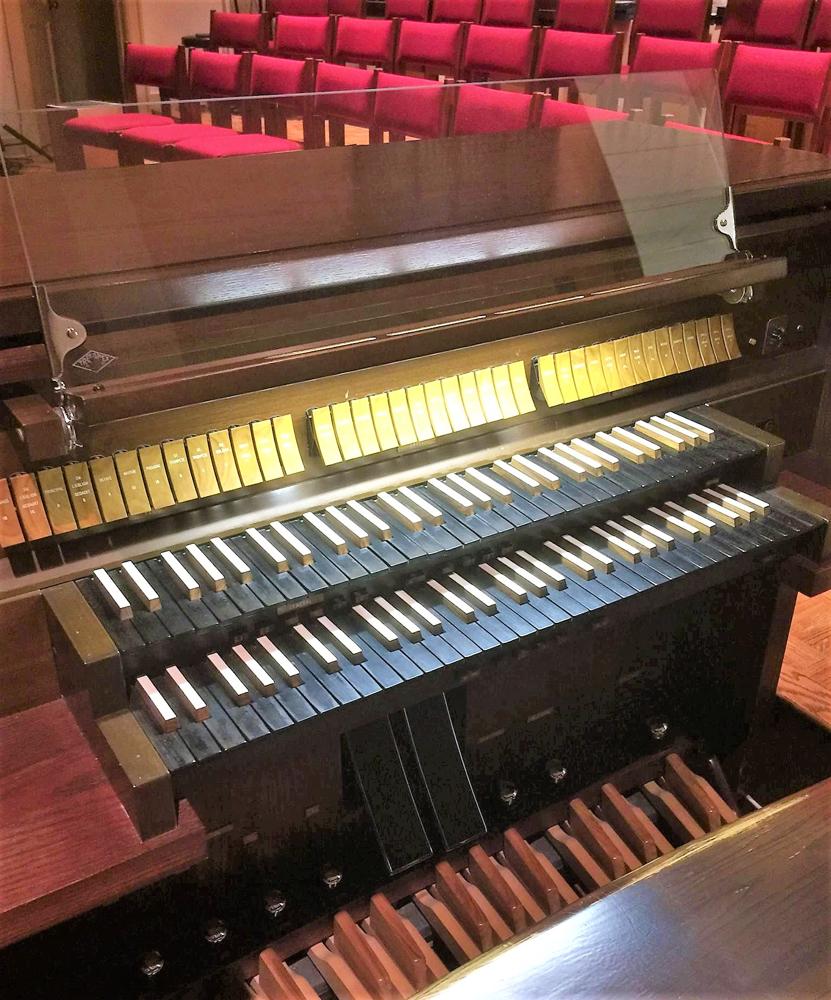

Console: Photograph by Amarillo Chapter AGO, via Facebook, submitted by Jeff Scofield. Taken on 2017-03-07

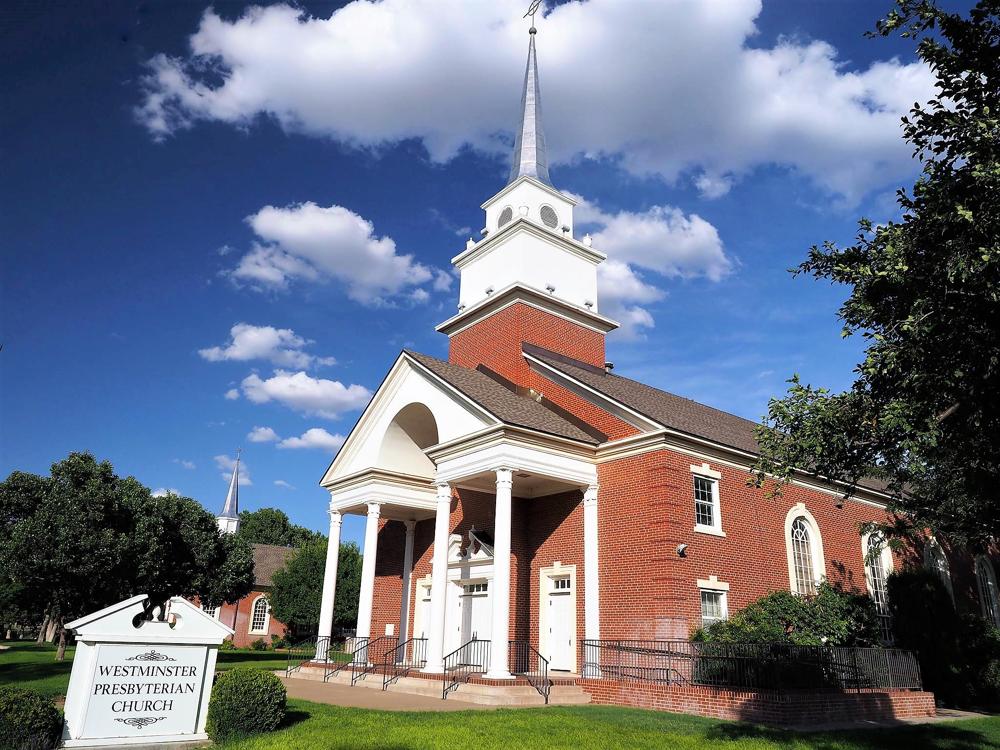

Church exterior: Photograph by Amarillo Chapter AGO, via Facebook, submitted by Jeff Scofield. Taken on 2018-09-16

This instrument has been viewed 274 times.
