Balcom and Vaughan Pipe Organs, Inc.
Opus 792, 1972

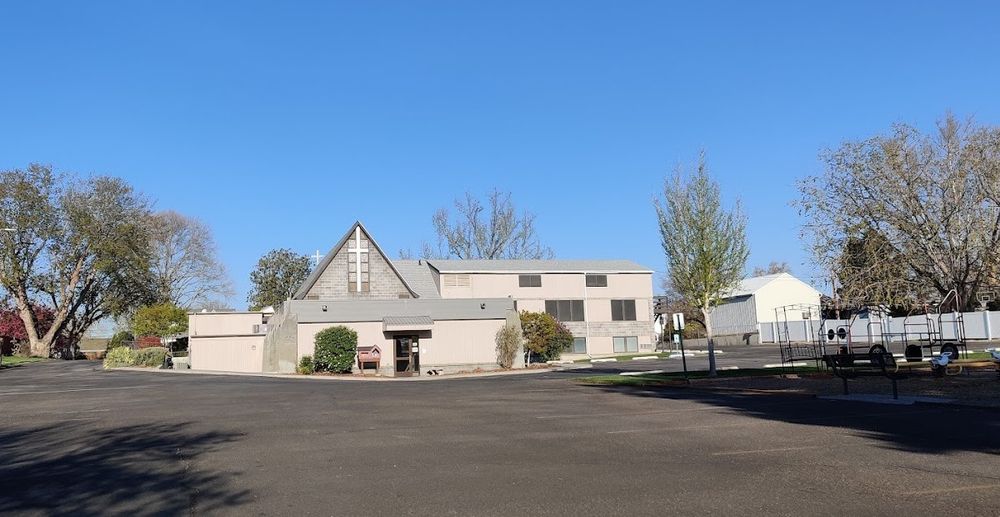

All Saints Episcopal Church
1322 Kimball Avenue
Richland, WA, US
10 Ranks - 694 Pipes
Instrument ID: 24812 ● Builder ID: 7403 ● Location ID: 21967
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.
| Great (I)🛈 | ||
| 8' | Principal🛈 | 61 |
| 8' | Rohr Flöte | 61 |
| 8' | Spitz Gamba | SW |
| 4' | Octave | 61 |
| 4' | Rohr Flöte | 12 ext. 8' RF |
| 2' | Italian Principal | 12 ext. Sw 4' I.P. |
| 1⅓' | Quint Flöte | from Sw Ged. unit |
| III | Mixture🛈 | 183 |
| 8' | Hautbois | SW |
| blank | ||
| 4' | Great to Great | |
| 8' | Swell to Great | |
| 4' | Swell to Great |
| Swell (II - Expressive)🛈 | ||
| 8' | Gedackt | 61 |
| 8' | Spitz Gamba | 61 |
| blank | ||
| 4' | Italian Principal | 61 |
| 2⅔' | Nasat | SW Ged. |
| 2' | Gedackt | 24 ext. 8' Ged. |
| 1' | Sifflöte | 12 ext. 8' Ged. |
| 8' | Hautbois | 61 |
| blank | ||
| blank | ||
| Tremulant | ||
| 16' | Swell to Swell | |
| 16' | Swell to Swell | |
| Swell Unison Off | ||
| 4' | Swell to Swell |
| Pedal🛈 | ||
| 16' | Gedackt Bass | 12 ext. Sw 8' Ged. |
| 8' | Principal | GT |
| 8' | Gedackt | SW |
| 8' | Spitz Gamba | SW |
| 4' | Choral Bass | GT |
| 4' | Rohr Flöte | GT |
| 2' | Octavin | GT |
| III | Mixture | from Gt 4' Oct. |
| 16' | Basson | 12 ext. Sw 8' Haut. |
| 8' | Hautbois | SW |
| 4' | Hautbois | SW |
| blank | ||
| 8' | Swell to Pedal | |
| 4' | Swell to Pedal | |
| 8' | Great to Pedal |
FINGER PISTONS: General 1-6, Swell 1-4, Sw. to Ped (reversible), Great 1-4, Gt. to Ped. (reversible), Pedal 1-4, Cancel; TOE STUDS: General 1-4, Pedal 1-4, Gt. to Ped. (reversible); PEDAL MOVEMENTS: Swell Expression (balanced), Crescendo (balanced); NOTES: the Pedal III Mixture is derived from the Great 4' Octave.
Open In New TabSomething missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️
Builder: Balcom and Vaughan Pipe Organs, Inc.
Position: Console in Fixed Position, Right
Design: Traditional With Roll Top
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
2 Manuals (61 Notes)32 Note Pedal2 Divisions8 Stops28 RegistersElectrical Key ActionElectrical Stop Action✓ Crescendo✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Coupler Thumb Piston(s)✓ Coupler Toe Piston(s)Stop Layout: Stop Keys Above Top Manual
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Adjustable Combination Pistons
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
Database Manager on November 28th, 2006:
This entry represents the first installation of a new organ. Identified through on-line information from James R. Stettner. Sources: Balcom & Vaughan opus list & files; extant, altered organ.
This entry represents the first installation of a new organ. Identified through on-line information from James R. Stettner. Sources: Balcom & Vaughan opus list & files; extant, altered organ.
Related Instrument Entries: Balcom and Vaughan Pipe Organs, Inc. (2017)
