John Brombaugh & Associates
Opus 30, 1987
Pilgrim Lutheran Church
5650 SW Hall Blvd.
Beaverton, OR, US
15 Ranks - 785 Pipes
Instrument ID: 6149 ● Builder ID: 855 ● Location ID: 5835
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Something missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️
Builder: John Brombaugh & Associates
Position: Keydesk Attached
Design: Traditional Without Cover
Pedalboard Type: Flat Straight
Features:

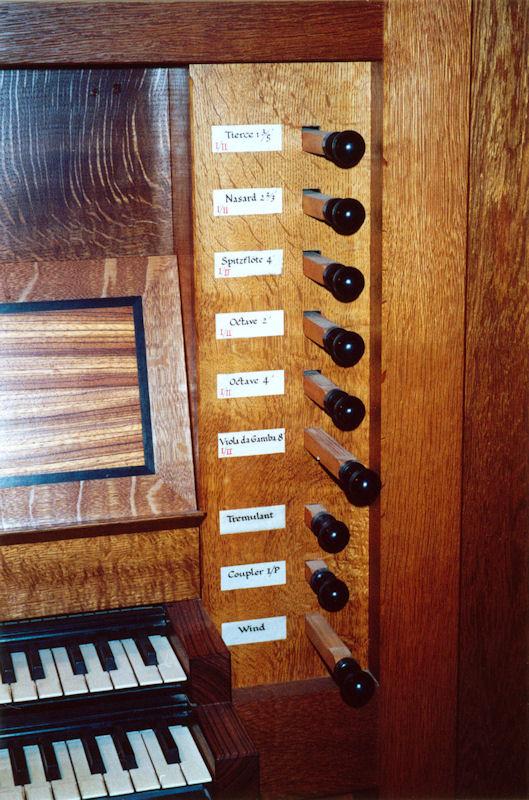

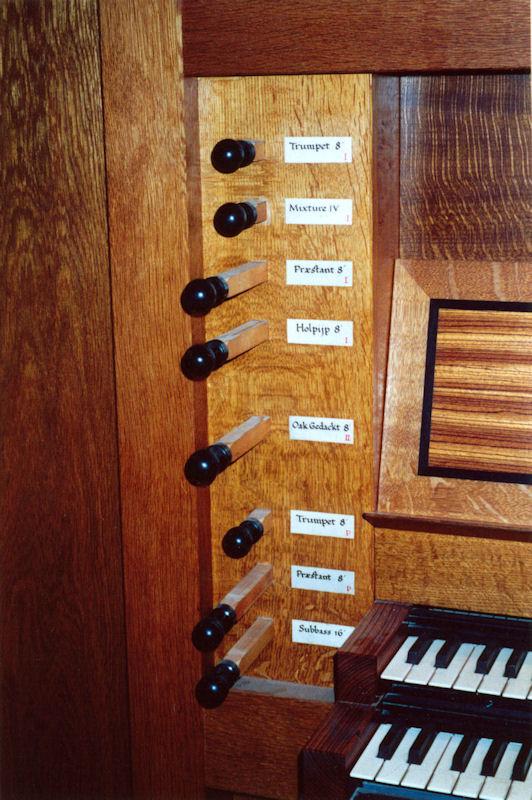

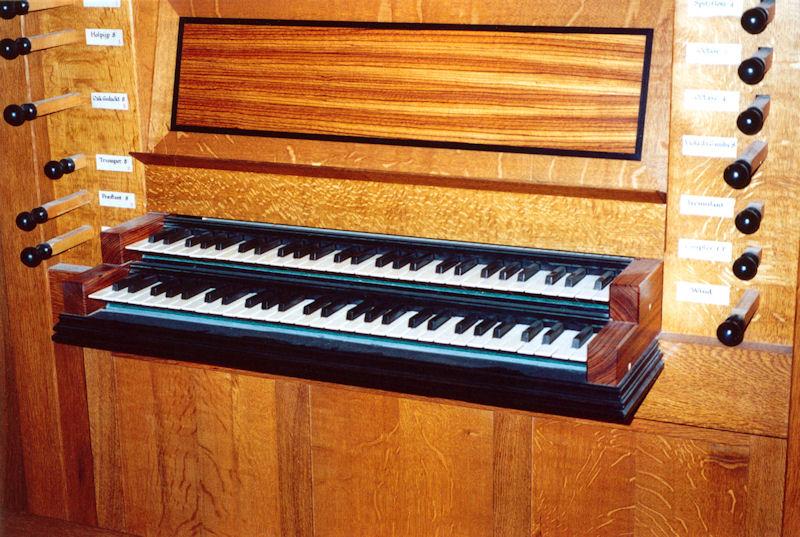

2 Manuals (56 Notes)30 Note Pedal3 Divisions14 Stops12 RegistersMechanical (Suspended Tracker) Key ActionMechanical Stop ActionStop Layout: Drawknobs in Vertical Rows on Flat Jambs
Expression Type: No Enclosed Divisions
Combination Action: None
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
Database Manager on March 22nd, 2007:

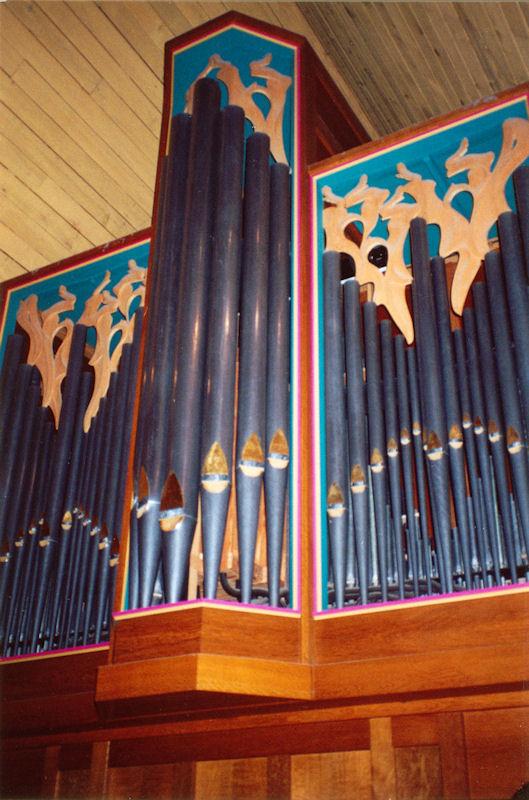

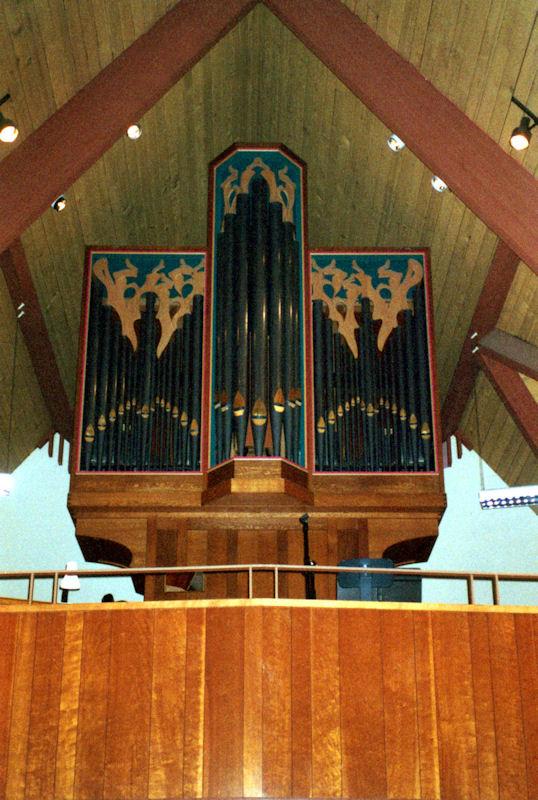

Updated through online information from James R. Stettner. -- Free-standing and encased. 3-sectional facade with 37 pipes arranged: 15-7-15. Pipes painted blue-green with gold mouths. Case detailed in red, gold, and blue-green painted highlights and trim. Manual I has four indigenous registers. Manual II has one indigenous register. The other six manual registers are available on both manuals, but not simultaneously. The stop shanks are notched. In this position, the stop is off. When fully drawn, it plays from Manual I. When fully pushed-in, it plays from Manual II. This is an "exchange slider" configuration. The Pedal has one indigenous register, and two additional stops borrowed from Manual I by transmission.
Updated through online information from James R. Stettner. -- Free-standing and encased. 3-sectional facade with 37 pipes arranged: 15-7-15. Pipes painted blue-green with gold mouths. Case detailed in red, gold, and blue-green painted highlights and trim. Manual I has four indigenous registers. Manual II has one indigenous register. The other six manual registers are available on both manuals, but not simultaneously. The stop shanks are notched. In this position, the stop is off. When fully drawn, it plays from Manual I. When fully pushed-in, it plays from Manual II. This is an "exchange slider" configuration. The Pedal has one indigenous register, and two additional stops borrowed from Manual I by transmission.
Database Manager on October 30th, 2004:
Status Note: There 1998.
Database Manager on October 30th, 2004:
Six of the 12 voices are duplexed and available on either keyboard.
